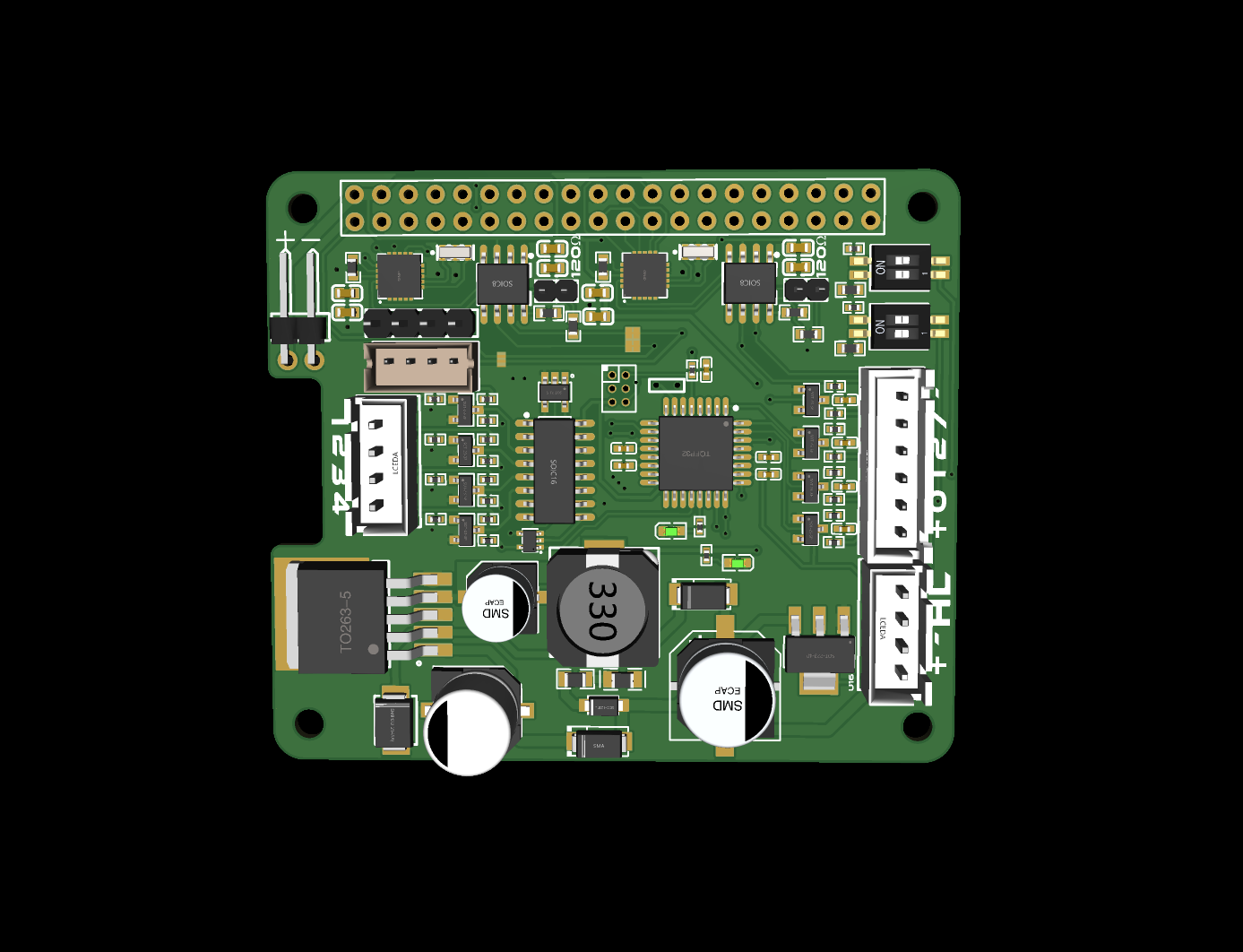

CAN Adaptor With Integrated CAN Expander

Expand Your Dashboard’s Capabilities with the PI CAN Interface

Enhance your digital dashboard setup with the PI CAN Interface with Integrated CAN Expander. Designed to seamlessly integrate with both PowerTune Digital Dash and OG DASH, this interface provides additional analog and digital inputs to ensure you have all the data you need for optimal vehicle performance monitoring.

Key Features:

• Four Analog Inputs
  The interface includes four analog inputs:

  • Versatile Sensor Support: Two inputs can be used for ohms-based sensors, and all four can be used for voltage sensors, providing flexibility to monitor various parameters.
  • Buffered Input: One of the analog inputs is buffered, making it suitable for monitoring fuel level, ensuring accurate and stable readings.

• Four Digital Inputs
  Expand your monitoring capabilities with four digital inputs, allowing you to connect and track additional digital signals from your vehicle.

• Seamless Integration
  Works flawlessly with PowerTune Digital Dash and OG DASH, enhancing your dashboard’s functionality without any compatibility issues.

• High-Speed CAN Bus Communication
  The integrated CAN expander ensures fast and reliable data transmission over the CAN bus, providing real-time updates and precise data monitoring.

Specifications:

• Analog Inputs: 4 (two support ohms-based sensors, all support voltage sensors; one buffered for fuel level)
• Digital Inputs: 4
• Compatibility: PowerTune Digital Dash, OG DASH
• Communication: High-speed CAN bus

What's Included:

• PI CAN Interface with Integrated CAN Expander
• Connection Cables
• Installation Guide

How to Use:

1. Connect the Interface: Use the provided cables to connect the PI CAN Interface to your vehicle’s CAN bus system.
2. Install Sensors: Connect your ohms-based and voltage sensors to the analog inputs, and your digital signals to the digital inputs.
3. Integrate with Dashboard: Ensure your PowerTune Digital Dash or OG DASH is configured to recognize and display the additional data from the PI CAN Interface.
4. Start Monitoring: Enjoy enhanced data monitoring capabilities with real-time updates and precise sensor readings.

Why Choose the PI CAN Interface with Integrated CAN Expander?

• Versatile Sensor Support: Accommodates a wide range of sensors, including ohms-based and voltage sensors, with a dedicated input for fuel level monitoring.
• Increased Monitoring Capabilities: Four additional digital inputs provide extensive data tracking options.
• Seamless Dashboard Integration: Designed to work perfectly with PowerTune Digital Dash and OG DASH.
• Reliable Performance: High-speed CAN bus communication ensures accurate and timely data transmission.

Upgrade your digital dashboard with the PI CAN Interface with Integrated CAN Expander, and experience enhanced data monitoring and increased functionality. Perfect for enthusiasts and professionals, this interface provides the versatility and reliability you need to get the most out of your vehicle’s digital dashboard.
